3 Channel Cranking Relay Module
Applications :
The Dual Channel Cranking Relay Modules can be used in high current switching required for Engine Start Stop Application.
It also has aprovision for remote indication or alarm.
TECHNICAL DATA
Input Data
| Operating Voltage | 12 VDC |
| Input Current/Chnl | 25mA @ 24VDC |
| Protection (Coil) | Free wheeling diode |
| Indication/chhl | LED |
General Data
| No. of Channels | 3 |
| Test Voltage | 1.5kV, 50Hz, 1M
|
| Mounting | Universal Rail Mountable |
| Identification Tag | Optional (On request) |
Standards & Approval
| *PCB: Type tested STQC, IEC 61373, |
| *ANSI IPC 319 MIL 275B |
| *Terminals: UL/CE & CSA |
| *Ambient Opt Temp: | Max 60 Deg.C |
| *Relative Humidity: | Max 90% (Non-Condensing) |

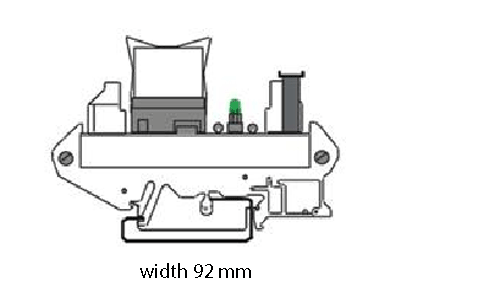

| No. of channel |
Length |
Width |
| 2 Channel | 90 | X | 92 |
HOW TO ORDER?BRM 3 - 12 D - 53 - 58 GNS
| No. Of Channels | 3 |
| Coil Voltage | 12 |
| D Signal | DC |
